PSiD Isolation type paint cabinet
No.
PSiD
Intro.

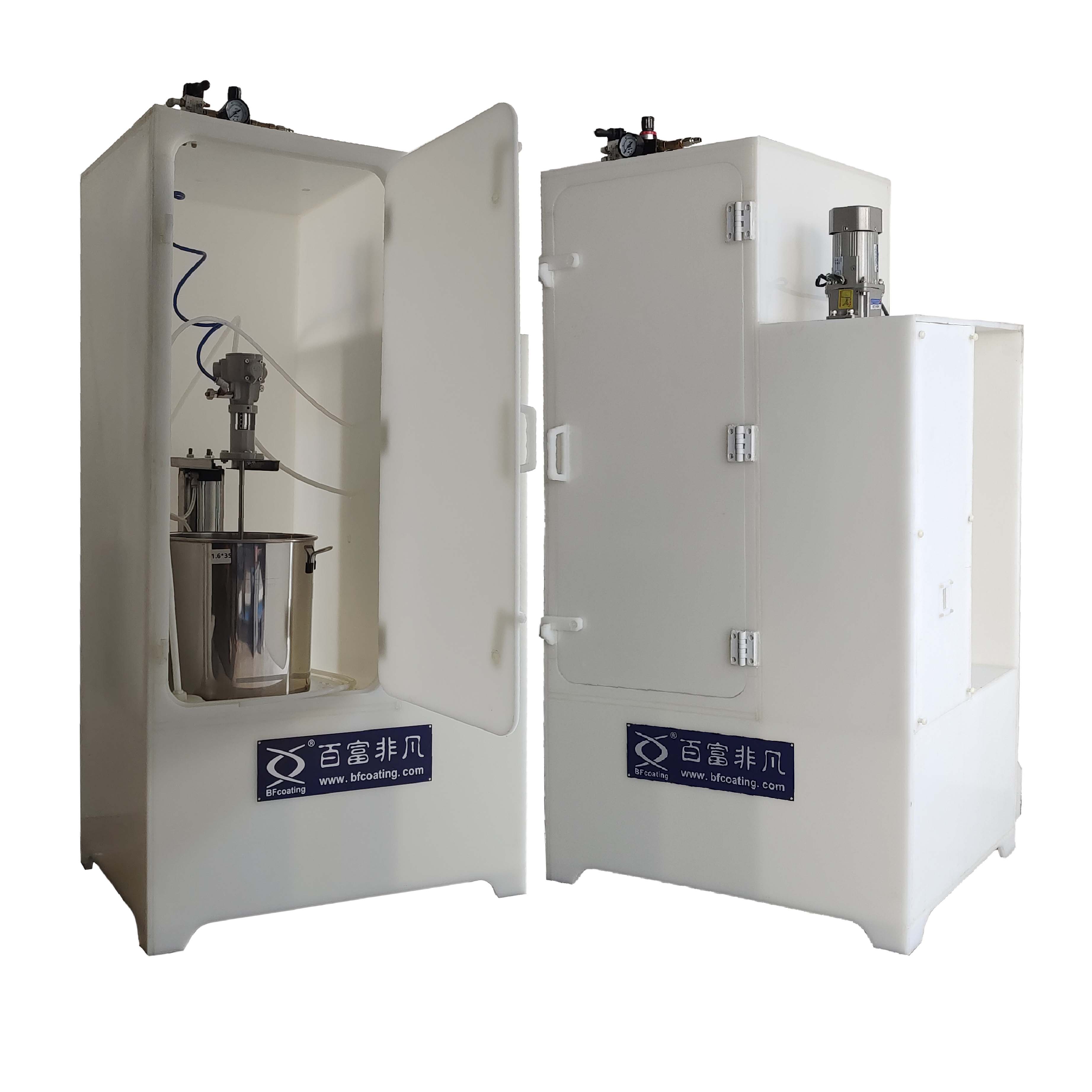

PSiD Isolation type paint cabinet Special insulating cabinets for water-based paints and highly conductive paints, welded from plastic steel with good insulation.
It is suitable for placing 30-liter paint buckets. A pneumatic agitator can be installed. It is suitable for paints with high solid content, metallic paints, etc. that are easy to precipitate and require constant stirring. The paint buckets are surrounded by insulated plastic steel plates and are isolated from the outside world, solving the traditional open problem. The air corona charged ions fly around, posing a risk of electric shock due to residual static electricity in surrounding objects. At the same time, the high-voltage static electricity is completely isolated by the insulating cabinet, which increases the safety of workers and reduces the workers' fear of electric shock.
It is suitable for placing 30-liter paint buckets. A pneumatic agitator can be installed. It is suitable for paints with high solid content, metallic paints, etc. that are easy to precipitate and require constant stirring. The paint buckets are surrounded by insulated plastic steel plates and are isolated from the outside world, solving the traditional open problem. The air corona charged ions fly around, posing a risk of electric shock due to residual static electricity in surrounding objects. At the same time, the high-voltage static electricity is completely isolated by the insulating cabinet, which increases the safety of workers and reduces the workers' fear of electric shock.
Features
1. Isolate static electricity inside the cabinet for high operational safety
2. The insulation cabinet is compact in design and can be installed independently on the floor.
3. Compared with the open type, it occupies a small area and is easy to place.
4. Designed with a stirrer, suitable for paints that easily settle
5. The painting system is standardized, easy to install and available immediately
6. The main circulation paint supply system is easy to use and adjust.
7. Stainless steel paint bucket, easy to clean
8. Stainless steel lining plate to maintain good isoelectric potential and avoid ignition of paint buckets.
Specification
| PSiD Isolation cabinet for 30 liter tank with agitator | ||
 | equipment composition ： | |
| 1). | #40i Seal, anti dust, anti humility metering pump | |
| 2). | Pneumatic agitator 1/8HP | |
| 3). | Air regulator with gauge | |
| 4). | Air branck block | |
| 5). | Guide for liter | |
| 6). | Liter & up-down handle | |
| 7). | Manual or auto earthing device | |
| 8). | Stainless tank 30 liter | |
| 9). | PSiD Plastic isolation cabinet | |
| 10). | Size（W*H*D）748*1474*599mm | |
| * Actual supplied scope, accoring to quotation sheet. | ||
